Heat flux sensor technology: printed thermopile conductors vs. etched-and-plated

Heat flux sensor technology review

Hukseflux’ foil heat flux sensors contain full-metal “etched-and-plated” thermopile conductors. Competing models use thermopile conductors made by printing metal-filled inks. Testing at Hukseflux has revealed potential shortcomings, in particular the instability of heat flux sensors manufactured using metal-filled inks.* A sensor that is not stable does not reliably perform an accurate and repeatable measurement. Users may detect stability issues by monitoring the electrical resistance of the heat flux sensor.

* Experiments were carried out on Hukseflux FHF series models, as well as sensors purchased from a leading supplier of printed heat flux sensors. The test results may not be applicable to sensors produced by other manufacturers or when improving manufacturing technology.

Read the full article here: heat flux sensor technology review: printed thermopile conductors vs. etched-and-plated (PDF)

Introduction

Heat flux sensors measure a temperature difference across a thin layer of material. They typically employ a thermopile, which is manufactured by creating an alternating pattern of two dissimilar conductors, generally metal alloys. See Figure 2 below.

heat flux measurement - sensor hot to cold flow

Figure 2 heat flux sensor principle: the sensor contains a thermopile consisting of an alternating pattern of two metal alloys.

Printed flexible circuits

Printed flexible circuits are commonly used in many applications. The electrically conductive inks used in these circuits consist of a plastic base-material filled with small conducting particles, typically copper, nickel or silver. Using an electrical circuit with through-holes and filling up alternate holes with two different conductive inks, you may construct a thermopile. See also US patent 10 393 598.

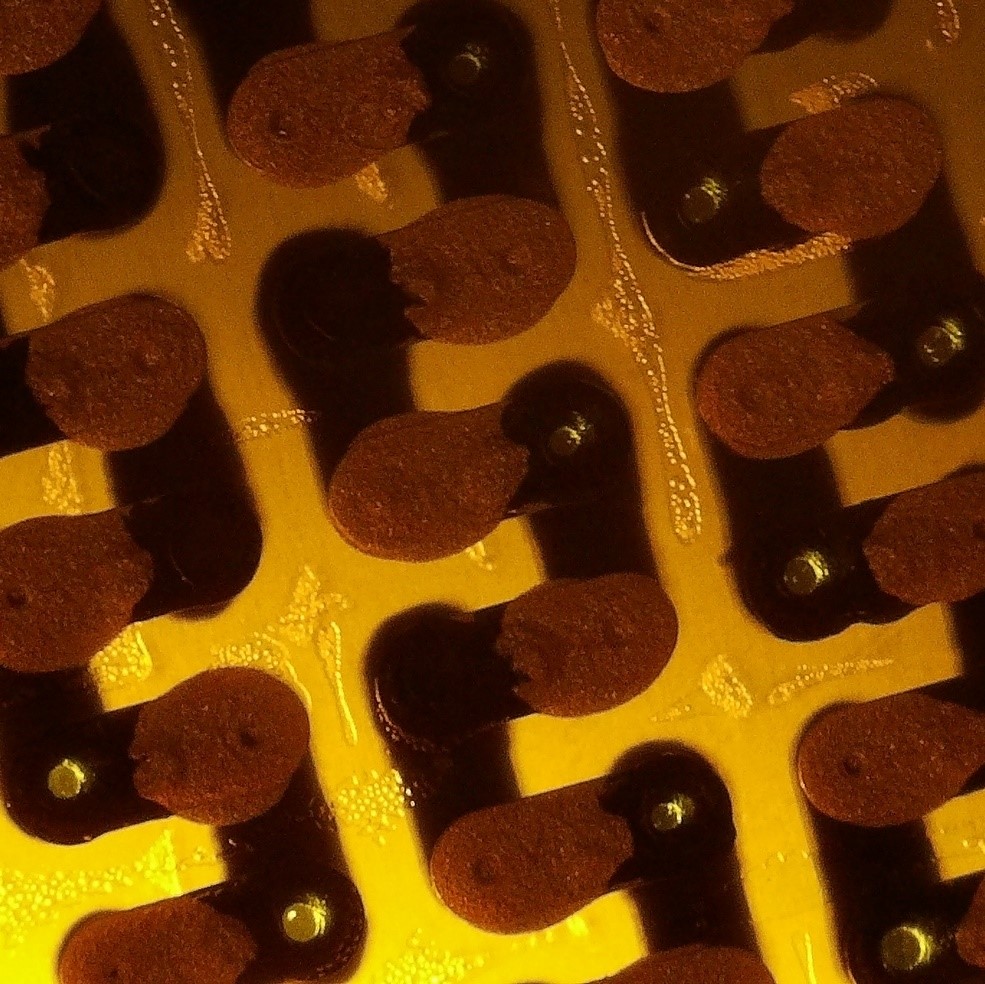

close up of a thermopile created using printing technology
Figure 3 close-up of a heat flux sensor with a thermopile created using printing technology. Two different metal-filled electrically conducting inks are printed into through-holes.

Etching and plating

Etching and plating technologies use a metal foil as base-material. By etching material away, and locally plating with another metal, you may construct a thermopile.

close up of a heat flux sensor with a thermopile created using etching and plating technology
Figure 4 close-up of a heat flux sensor with a thermopile created using etching and plating technology. A continuous full-metal trace is locally plated and woven through the plastic base material of the sensor.

Differences: sensor stability

The differences between the two technologies were revealed in two experiments. They address potential issues with sensor stability, i.e. change in sensitivity.

  • stability under high temperature exposure
  • stability under bending

An unstable sensor grows increasingly unreliable with time and use. As a result, its uncertainty of the sensitivity, as given in the calibration certificate is no longer valid. To put test results in perspective: the calibration uncertainties of all sensors involved are 5 %. An instability of just a few percent is significant.

Test results

The sensitivities of the sensors were tested at 20˚C after 1-time bending around a pipe of 25  x 10⁻³ m radius, and after 24 hours of exposure to high temperatures. Sensors were first exposed to 120 and later to 150 ˚C. The 150 ˚C is above the rated operating range for printed sensors and only serves to present an indication what may happen during long-term exposure within the rated 120 ˚C range. The changes of sensitivity were all relative to an initial measurement by Hukseflux at 20 ˚C and were all performed on a flat surface. When determining the sensitivity, the capability to measure changes has a reproducibility in the order of 1 %, asserting that changes of 3 % can meaningfully be detected. In this experiment the absolute accuracy is not a factor.

Table 1 test of stability of the sensitivity and the internal resistance of heat flux sensors based on two manufacturing technologies. Tests were performed before and after 24-hour exposure to high temperatures and before and after bending. Sensors are all rated for long-term use up to 120 ˚C, and sold as “flexible”, which was confirmed by the sellers: “suitable for bending up to 1.25 x 10⁻³ m radius”. Changes are all relative to those at the start of the test, positive values indicating a higher value after testing.

sensor technology

test

permanent change of sensitivity

permanent change of resistance



[name]

[(V/(W/m²)/(V/(W/m²)]

[Ω / Ω]

etched

bending radius

25 x 10⁻³ m

not detectable (< 3 %)

< 2 %

printed

Bending radius

25 x 10⁻³ m

-7 %

+11 %

etched

120 ˚C

not detectable (< 3 %)

< 2 %

printed

120 ˚C

+ 6 %

+ 250 %

etched

150 ˚C

not detectable (< 3 %)

< 2 %

printed

150 ˚C

+ 16 %

+ 1200 %



Conclusions

  • sensors based on the etching and plating manufacturing technology are stable under bending and high temperature exposure
  • sensors based on metal-filled inks must be treated with care and may have stability issues, even under mild exposure.
  • sensors based on metal-filled inks may have different failure mechanisms under bending and under exposure to high temperatures. Comparing test results resistance increases in all tests while sensitivity increases in one test and sensitivity decreases in the other.

Read the full article, including Discussion and Recommendations, here: heat flux sensor technology review: printed thermopile conductors vs. etched-and-plated (PDF)
